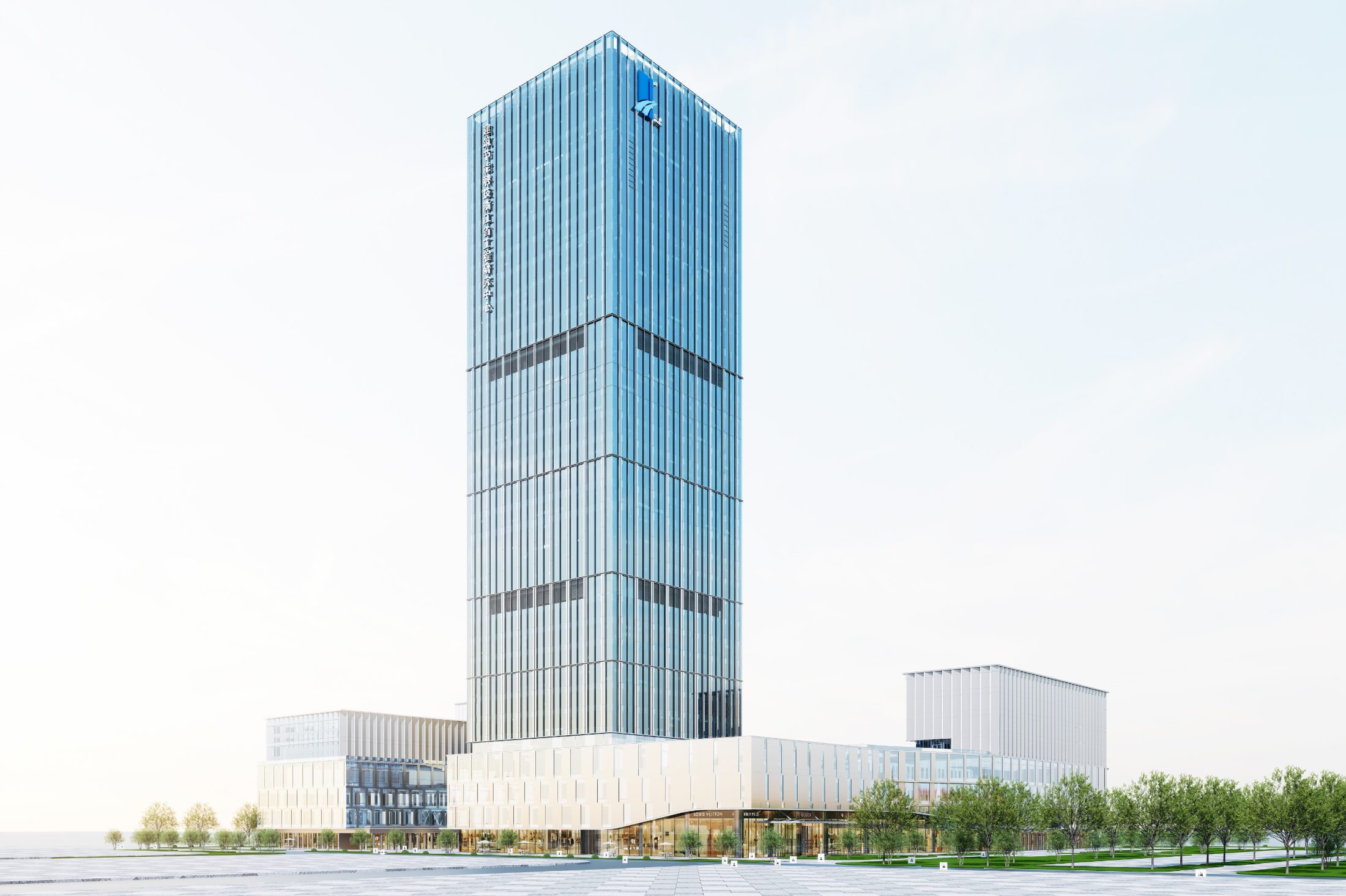

Rendering

China Building Energy Conservation Technology Research Center

China Building Energy Conservation Technology Research Center is an ultra-low energy research building integrating scientific research, technical exhibition and office. Aiming at nearly zero energy consumption, the facade integrates high-performance energy-saving curtain wall and BIPV photovoltaic system. It balances thermal performance of enclosure, natural daylighting and architectural aesthetics, building a demonstration benchmark for building energy-saving technology in China.

Location

Shaoxing，China

Year

在建中

Type

Research / Public

System

High-Performance Unitized Curtain Wall

Client

Baoye Group Co., Ltd.

Architect

Baoye Architectural Design & Research Institute

Facade area

87000 m²

Baoye scope

Design and installation

Design Challenge

Curtain Wall System: BIPV photovoltaic integrated curtain wall, high-performance stick energy-saving glass curtain wall, shading integrated curtain wall system
Main Materials: Four-glass two-cavity Low-E insulated energy-saving glass, photovoltaic modules, thermal-break aluminum alloy profile, weather-resistant low thermal conductivity structural sealant, thermal-break hardware
Performance: Comply with GB/T 21086, meet strict thermal indicators of nearly zero energy buildings, high air tightness and low heat transfer coefficient, qualified wind resistance, water tightness and sound insulation
Construction Technology: Integrated design of BIM energy simulation and curtain wall detailed drawing, optimize joint structure via thermal bridge analysis; factory prefabrication of precast components, on-site assembly and strict airtightness control of enclosure

Engineering Solution

The combination of BIPV photovoltaic and high-performance energy-saving curtain wall achieves dual goals of power generation and ultra-low energy consumption, providing engineering practice samples for enclosure of nearly zero energy buildings
BIM energy simulation and thermal bridge joint optimization greatly reduce heat transfer loss of curtain wall and improve air tightness, overcoming energy-saving weaknesses of conventional curtain wall
Curtain wall integrated external shading system passively reduces solar radiation and air-conditioning load, improving comfort of scientific research and office space
Prefabricated construction mode reduces construction waste. As a national carrier for building energy conservation popularization, it guides the promotion of green and low-carbon building technologies
