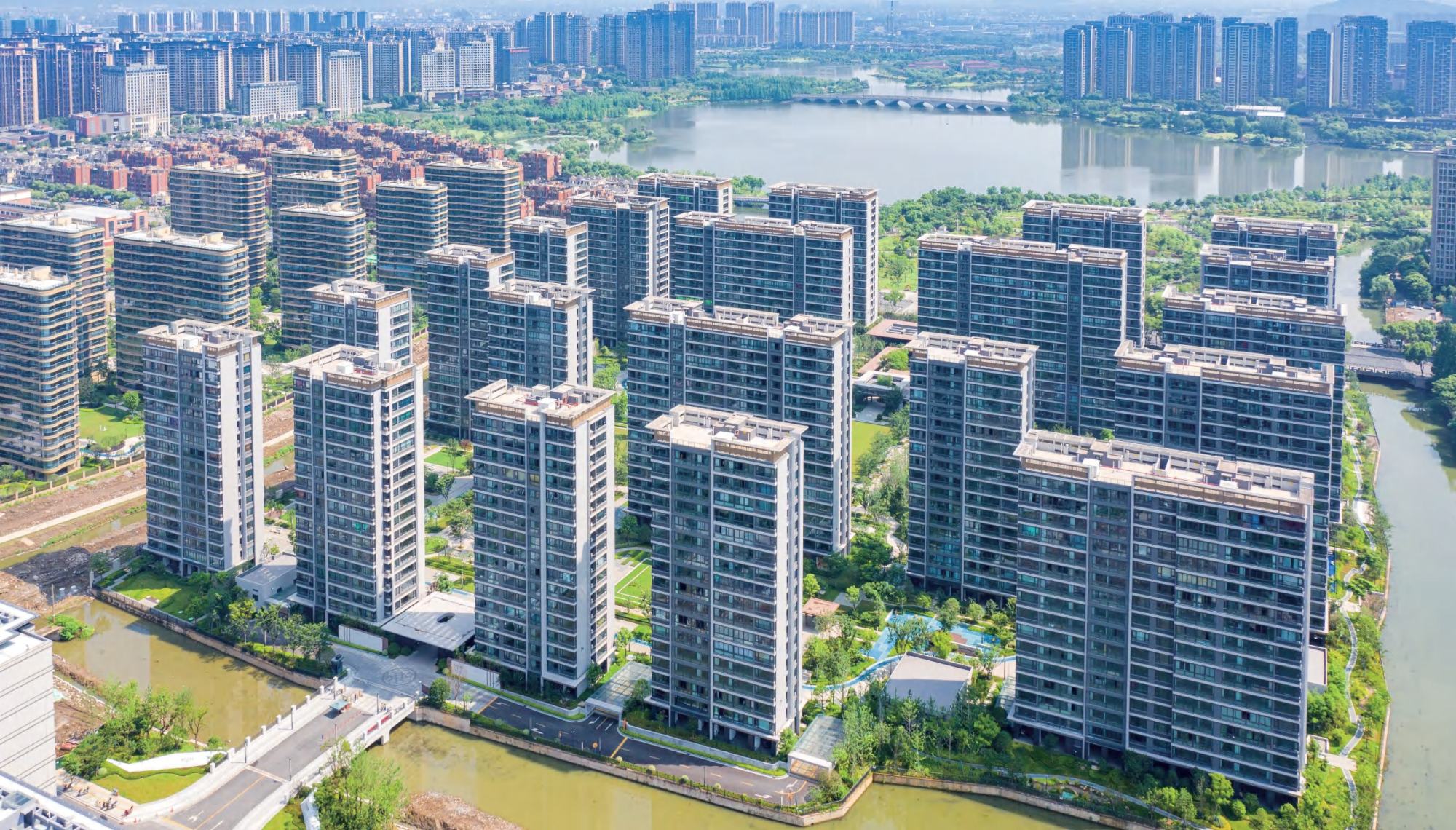

Shaoxing Baoye Daban Green Garden

Shaoxing Baoye Daban Lvyuan is located in Banhu area of Keqiao, Shaoxing. It is a national pilot project of century housing and green residential demonstration project for human settlement environment, consisting of 21 small high-rise residential buildings. The facade adopts large glass and aluminum panel curtain wall system. Based on Baoye SI prefabricated century housing technology, it balances daylighting, acoustic comfort and low-carbon energy saving, building a high-quality lake-side prefabricated housing benchmark. The project won the Guangsha Award and Lanhua Cup Quality Engineering Award.

Location

Shaoxing, China

Year

2021

Type

Residential

System

Neisen System Windows & Doors

Client

Shaoxing Baoye Daban Lvyuan Real Estate Development Co., Ltd.

Architect

Baoye Architectural Design & Research Institute

Facade area

44,000 m²

Baoye scope

Design and installation

Design Challenge

Curtain Wall System: Stick glass curtain wall, aluminum panel curtain wall, balcony railing system, facade decorative moulding
Main Materials: Double-silver Low-E insulated tempered glass, fluorocarbon coated aluminum panel, thermal-break aluminum alloy profile, weather-resistant structural sealant, anti-corrosion hardware
Performance: Comply with GB/T 21086, meet wind resistance, water & air tightness, sound insulation and thermal insulation requirements for residential buildings in Yangtze River Delta
Construction Technology: BIM integrated prefabricated detailed design, standardized curtain wall modules for multiple buildings; factory prefabrication of components, batch on-site assembly with strict control of facade flatness and finishing precision, meeting durability requirements of enclosure for century housing

Engineering Solution

Integrated curtain wall of large glass and aluminum panel creates transparent and simple modern lakeside facade with good daylighting, solving the common problem of facade falling off in traditional residential buildings
BIM standardized prefabricated module design realizes unified production of components for multiple buildings, greatly improving installation efficiency and guaranteeing long-term durability of enclosure for century housing
High-performance Low-E insulated glass enclosure effectively blocks solar radiation and reduces energy consumption, improving sound insulation and comfort of living space
As a national century housing pilot project, its facade project has won Guangsha Award and Lanhua Cup Quality Engineering Award, providing demonstration samples for curtain wall of high-quality prefabricated residential buildings
